Ashampoo® 3D CAD Professional 4
Professional CAD software to plan, visualize and communicate all of your building projects.
Version 4.0.1, 2013/09/12





















































CAD Software for Professionals

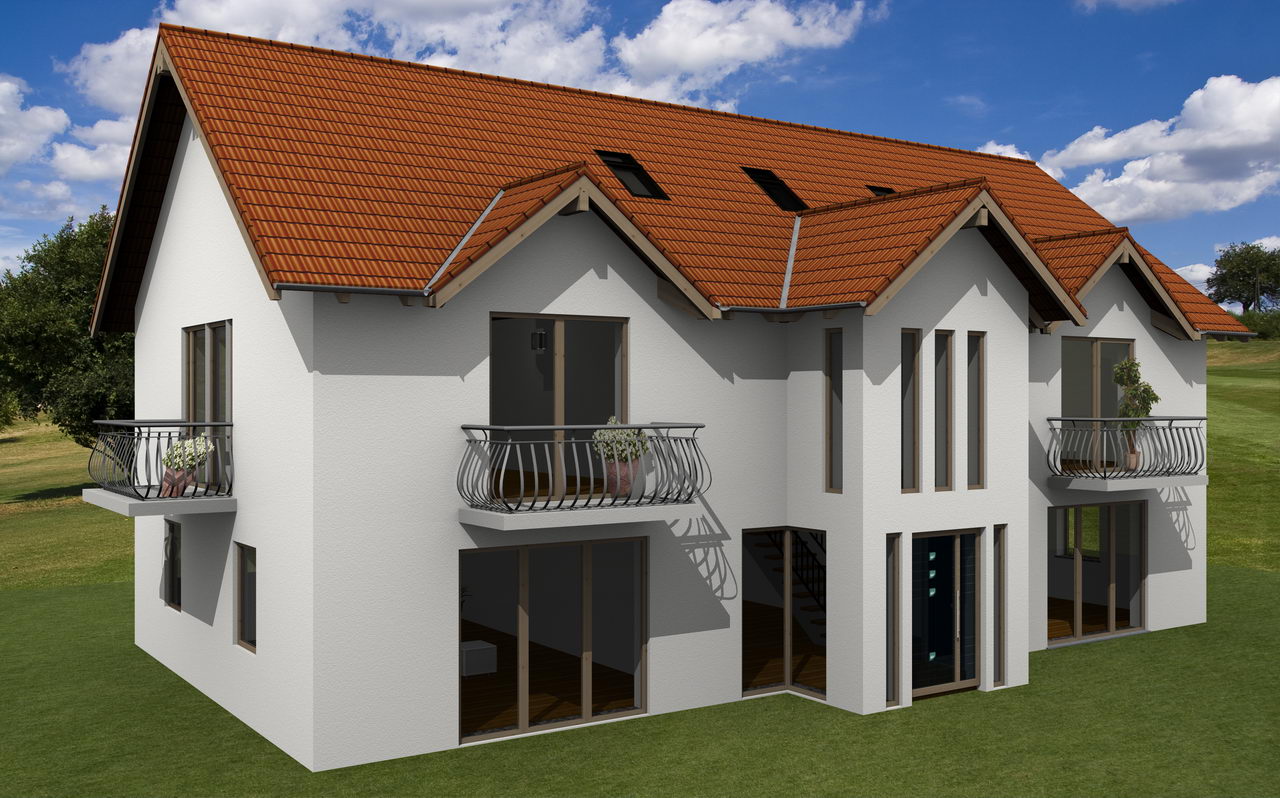

Ashampoo 3D CAD Professional 4 is the ideal solution to plan, visualize and communicate your interior and exterior design ideas.

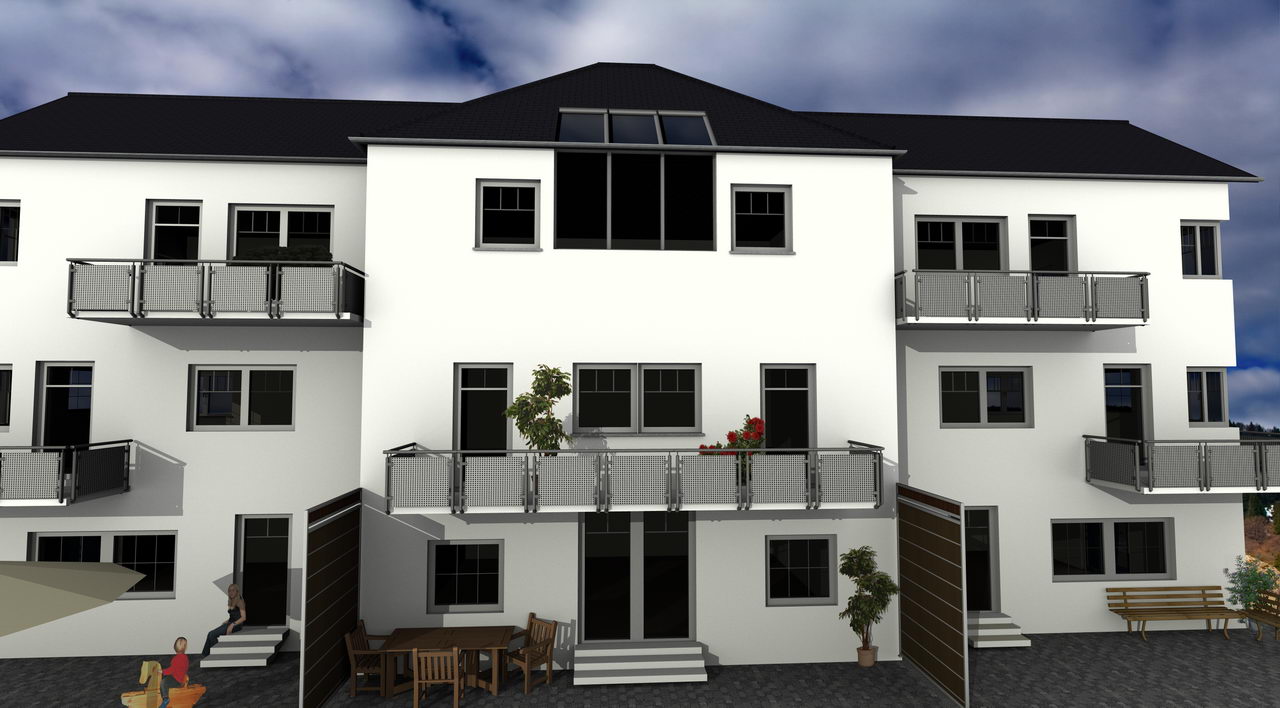

  • Design single rooms, apartments or entire buildings including gardens
  • Add included furniture and other objects or import existing 3D models in all common formats
  • Apply realistic lighting for realistic impressions of your buildings
  • PRO Create your own windows and window types
  • PRO Extended roof features (see below)
  • PRO Import/export 2D DXF/DWG project files
  • PRO Export your models to Maxon Cinema 4D

New Features in Ashampoo CAD Professional 4

Project Wizard

  • NEW Step 1: Enter project data such as building contractor, planner and project location.
  • Step 2: Select measuring units, scale and floor plan shape.
  • Step 3: Specify dimensions.
  • NEW Step 4: Edit number of floors with adjustable heights.
  • NEW Step 5: Select the roof from pre-defined shapes or customize each roof side individually.

PRO Extended Roof Features

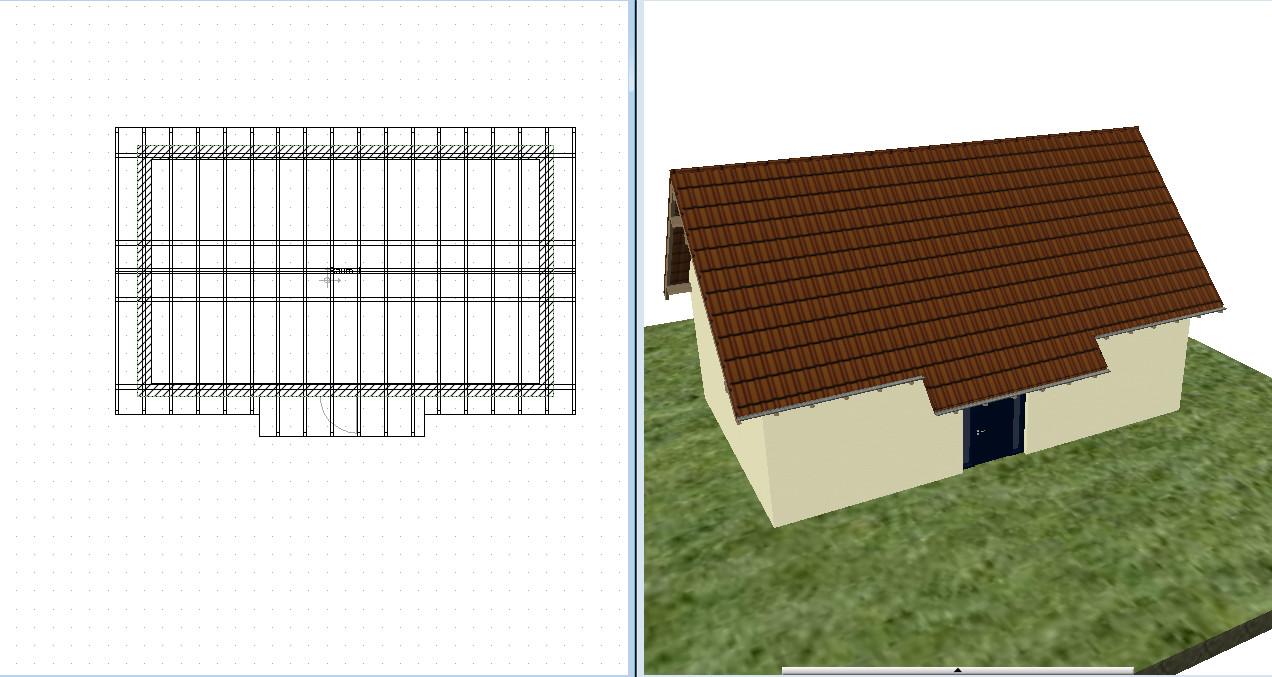

  • Customizable roof extensions: Create individual designs for each roof side.

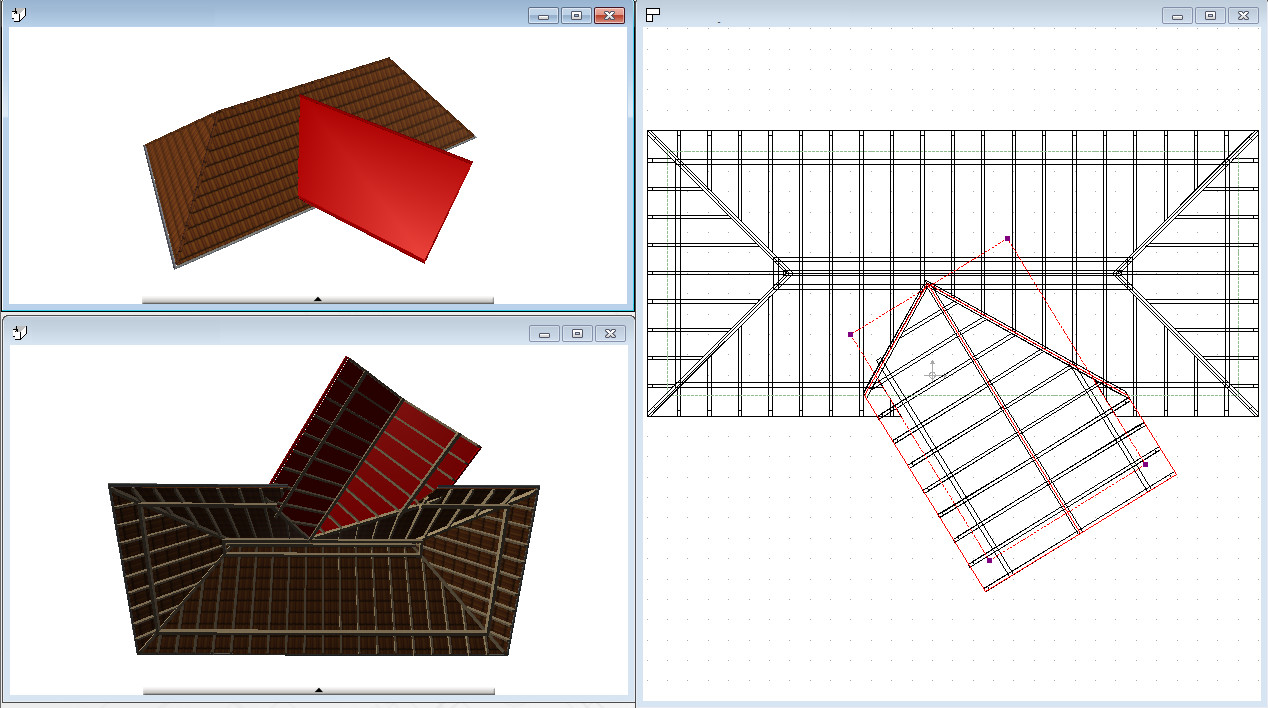

  • Roof merging: Merge individual roofs with two mouse-clicks. Calculation of new structures happens automatically while individual parts remain editable.
  • Support for circular roofs
  • Create roofs with corrugated sheets of different profiles

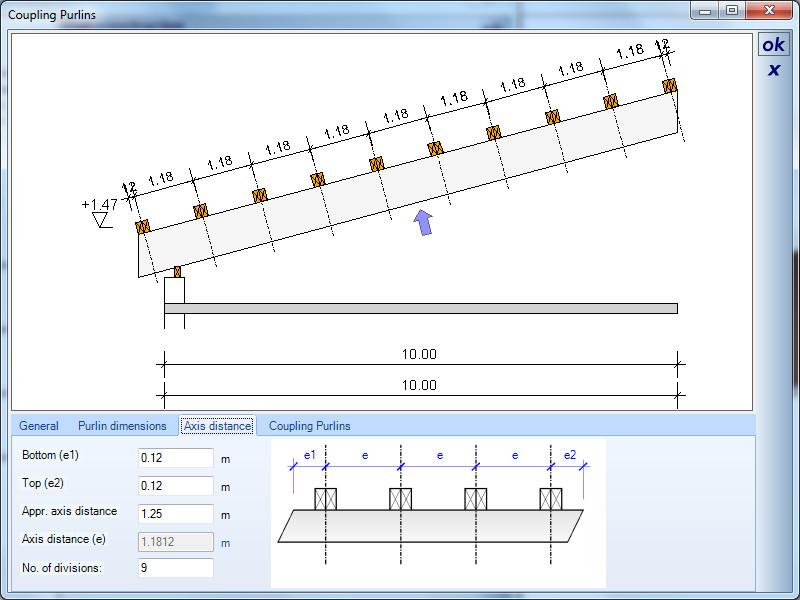

  • Customizable timber construction

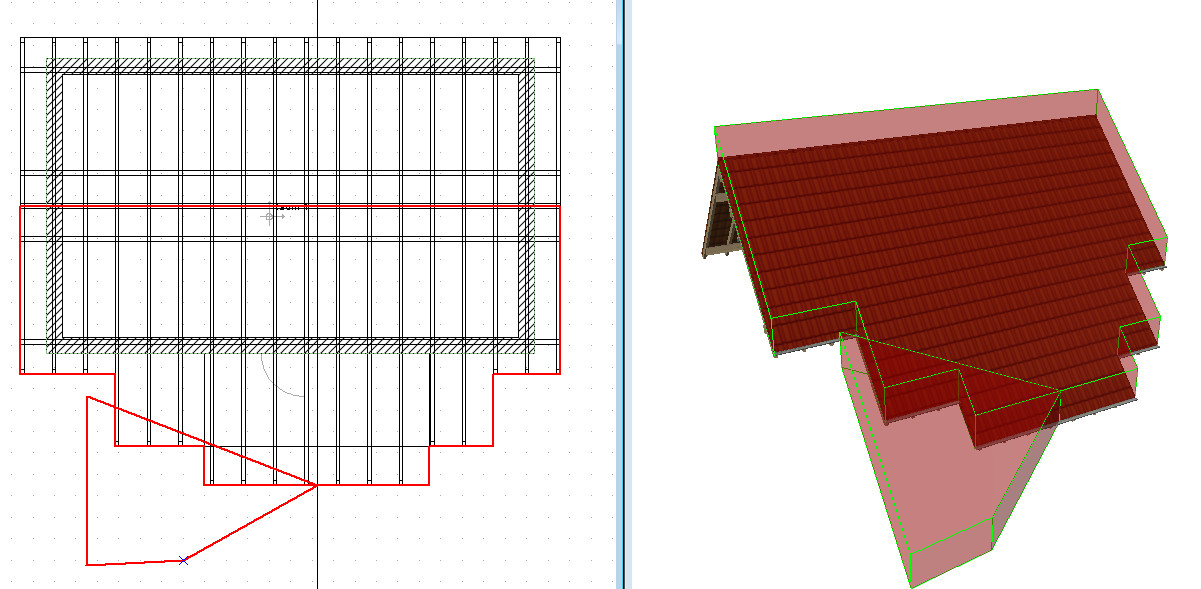

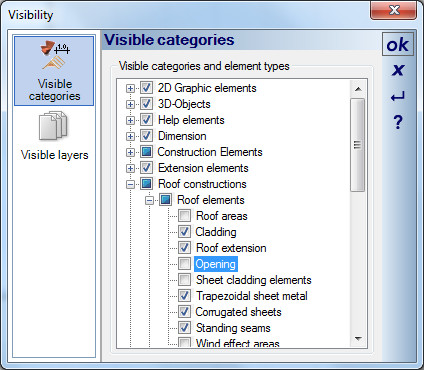

  • Roof openings

Other

  • Catalog: New 2D symbols to add more detail to 2D views, e.g. vehicles
  • Support for 2D angle dimensioning
  • Angle measurements
  • Measurements through polygons
  • Photovoltaic panels: New grid input and additional 3D modules
  • Shadow simulation: Specify geographic location and start/end times to track shadow distributions across fixed timespans, e.g. to facilitate planning of photovoltaic systems
  • Automatic area and length calculation for roofs, eaves, gorges, ridges and verges
  • Support for area and volume calculation

PRO available in Ashampoo CAD 4 Professional only

Features

  • Design views: 2D, 3D, Cross-section
  • 3D constructions: 7 primitives (cube, cone, cylinder, sphere, torus, wedge, pyramid), extrusion/rotation/sweep/subtraction solids
  • Building components: Walls, ceilings, windows, doors, openings, slots, skylights, solar elements, chimneys, beams
  • Measurements: Metric and imperial with precise dimensions
  • Input aids: Customizable reference points, construction aids (center point, intersection point, point with distance from, perpendicular, parallel point, point in line, enter coordinates), angle grid
  • Exterior lighting simulation
  • Freely positionable camera and viewing angles
  • PRO 2D DXF/DWG project import/export: Data exchange with other popular CAD tools
  • PRO Maxon Cinema 4D export

Design & Construction Tools

  • Roofing Wizard: Various material, cladding, rafters, eaves and gables settings, 7 dormer types (shed, flat, hipped, triangular, trapezoid, barrel, bat), PRO additional extended features
  • PRO Window Designer: Customizable openings and opening directions, window sills, window bars and door frames
  • Stair Generator: 3 solid and wooden types (straight, geometrical, landing), handrails, wellholes
  • Topography Designer: 6 forms (hill, swale, plateau, wall, trench, slope), 4 terrain elements (bed, way, terrace, water course), customizable contours

Catalog (Object Library)

  • Construction elements: Doors, profiles, windows, solar elements, constructions (e.g. balconies, carports)
  • Objects: 2D (cars, people, plants, animals), 3D: Exterior (e.g. garages, garden appliances), components (windows, doors, columns, tiles, girder), interior (e.g. kitchen and bathroom appliances), people, basic forms, signboards
  • Textures: Exterior (grounds, grass etc.), building (wood, metal, plaster etc.), interior (wallpaper, leather, carpets etc.), colors
  • Materials: Different materials such as grass, rattan, water and more
  • 2D Symbols: Various symbols from different areas including appliances, building elements and other

PRO available in Ashampoo CAD 4 Professional only


Requirements
Operating System:
Windows® XP with SP3, Windows Vista®, Windows® 7 (32bit/64bit), Windows® 8 (32bit/64bit)

Computer:
Any computer that runs one of the above operating systems at a reasonable speed. Please install the latest video drivers for best results.

CPU:
1200 MHz (or higher) x86 CPU

RAM:
Min. 1 GB RAM

Hard Drive Space:
1000 MB

Software:
Microsoft .NET Framework Version 4.0
VS 2010 Redistributables

Languages (10):
German, English, Dutch, French, Hungarian, Russian, Polish, Italian, Spanish, Slovakian

Download link:
http://www.ashampoo.com/ashampoo_3d_cad_professional_4_sm.exe (1332.68MB)
